Cryogenic Globe Valve

CCK Valve is a leading manufacturer developing a complete line of high quality cryogenic valves in World. Our products have internationally recognized approvals. The company has strong R&D capabilities and continues to improve customer satisfaction.

Technical parameters:
1. Nominal diameter: NPS 3 (DN=80mm);
2. Nominal pressure: CL 300 (PN=5.0MPa);
3. Operating temperature: -196 ℃~+80℃;
4. Media used: LNG, oxygen, nitrogen, argon, air and other gases, liquids;

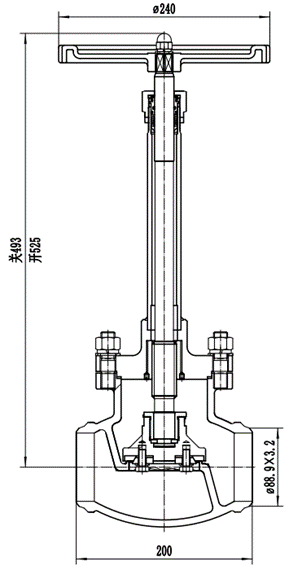

5. Installation requirements: The best option is to be perpendicular to the pipeline as shown in the diagram.
6. Connection form: butt welding (British system)
7. The welding size can be customized according to the wall thickness of the user’s pipeline;
