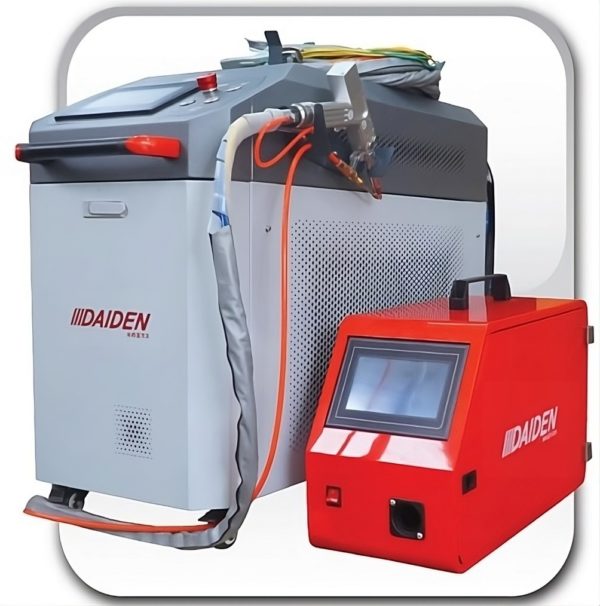

Laser Welder LW : 1500
Output Power : 1500 W
Output Power Adjustment Range : 10-100 %
Laser Wavelength : 1080 + 10nm
Power Consumption : < 1 %
Power Stability : 20 kHz
Laser Response Time : < 10us
Indication Laser Power Range : < 1 mW

TORCH
Type : Handheld welding Torch with Wirefeeder
Collimating Focal Length : 50 mm
Focal Length : 150 mm
Fiber Length : 10 mm ( or customermize )

WORKING CONDITION
Cooling method : water cooling
Ambient Temperature : 10-40 C
Input Voltage : 220 + 10 % Vac
Power Consumption
( including water cooling ) : 8 kW
Humidity : 10-85 %
MECHANICAL SPEC
Dimension : 990x415x685mm
Weight : < 100 Kg
