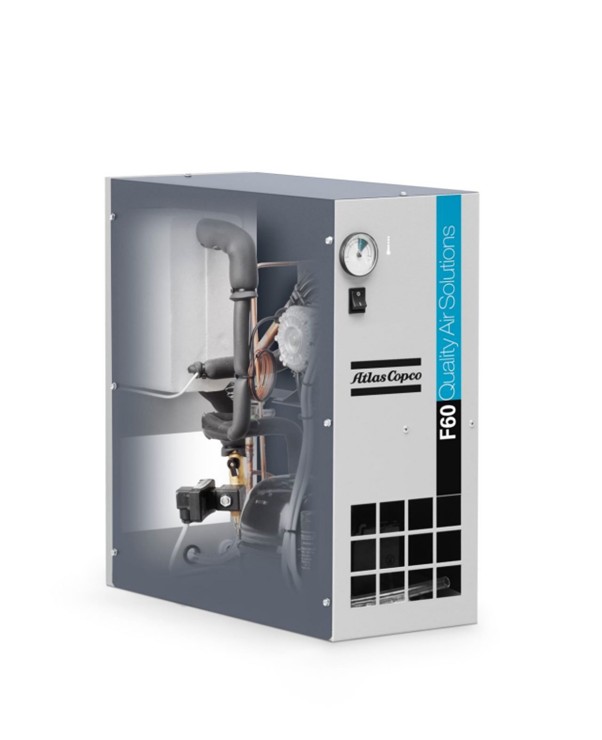

F refrigerated air dryer

F5-130 refrigerant air dryers

The Atlas Copco F series refrigerant dryers keep your compressed air system in optimal shape, removing humidity efficiently and reliably. With a stable pressure dewpoint as low as 7 °C, these compact, low maintenance dryers are compatible with most compressor technologies and applications.

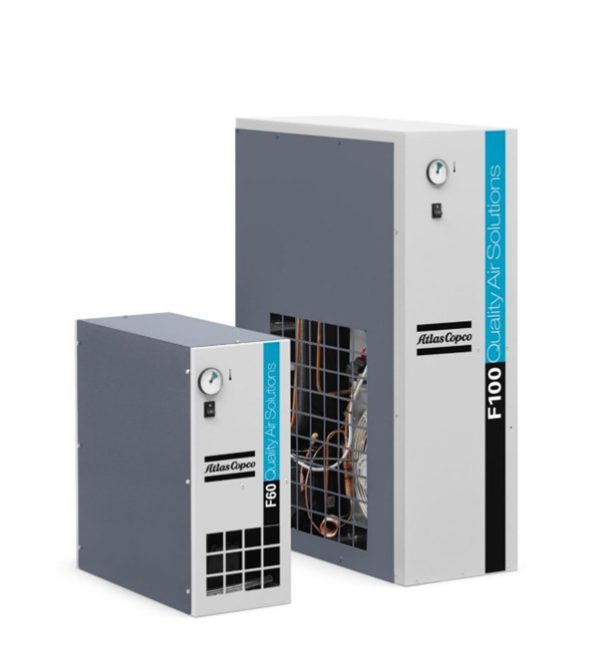

F series refrigerant compressed air dryers

The Atlas Copco F  5 – 130 series refrigerant dryers keep your compressed air system in optimal shape, removing humidity efficiently and reliably. With a stable pressure dewpoint as low as 7 °C, these compact, low maintenance dryers are compatible with most compressor technologies and applications.

The air that leaves a compressor reaches 100% humidity. Aftercoolers and drains are the first line of defense against water in your system. Our dryers eliminate the residual humidity to achieve absolutely dry air for applications that require advanced air quality.

Refrigerant dryers

Refrigerant dryers use a refrigerant gas to cool compressed air. This allows them to first condense and then remove the humidity in the air.

IS0 8573-1 CLASS 5 QUALITY

Thanks to their 7 °C (45 °F) pressure dewpoint, our F dryers can be used for applications that require ISO 8573-1 Class 5 air quality.

Technical benefits

Quick installation & easy operations

Compact footprint of only 0.13 m2. Simple vertical design. Quick plug-and-play installation Dewpoint indicator to verify air quality.

Strong performance

Stable pressure dewpoint as low as 7 °C. Simple and proven design. Quality components
